Serie BL7 - Schlasfsofa Mechanismus - Lampolet

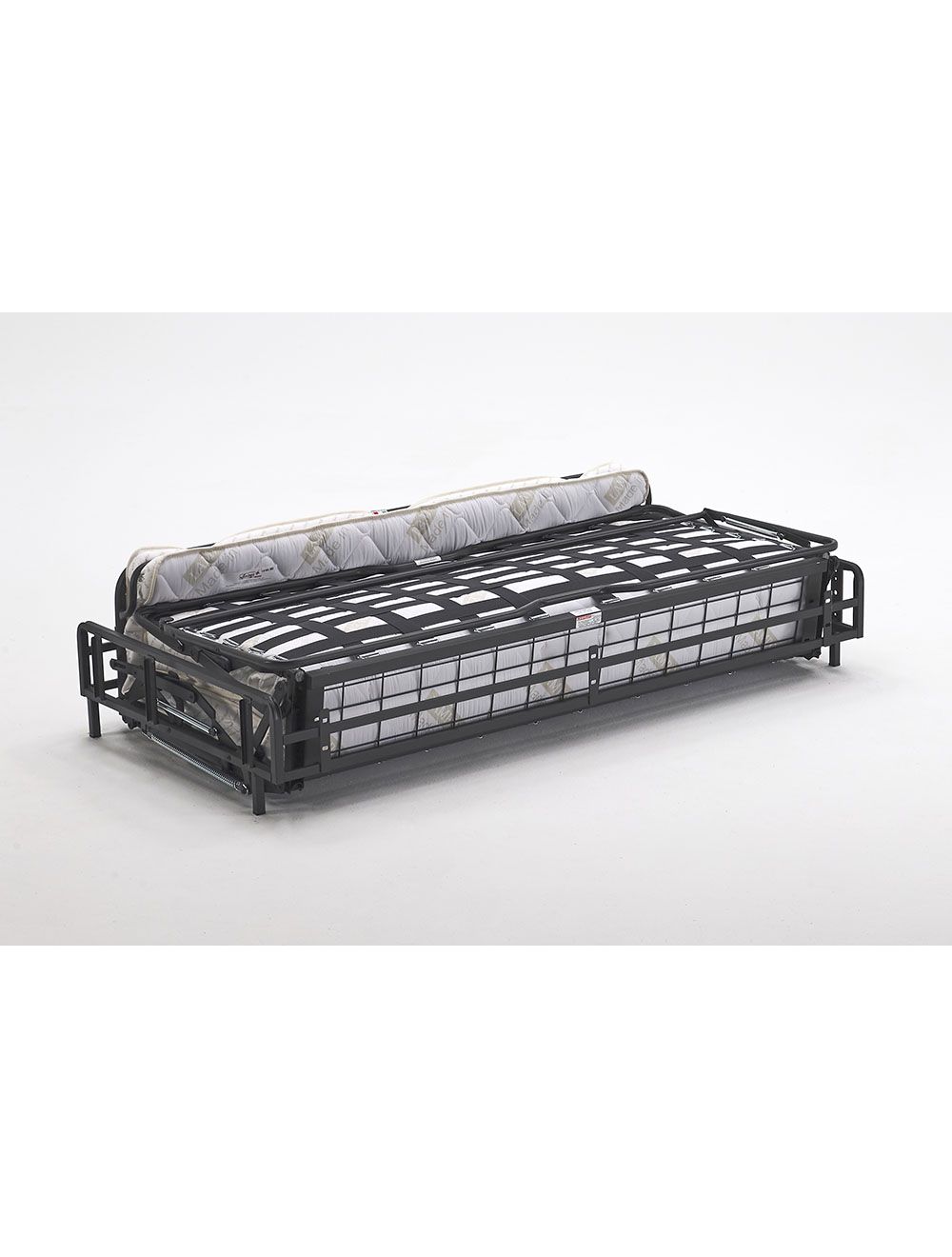

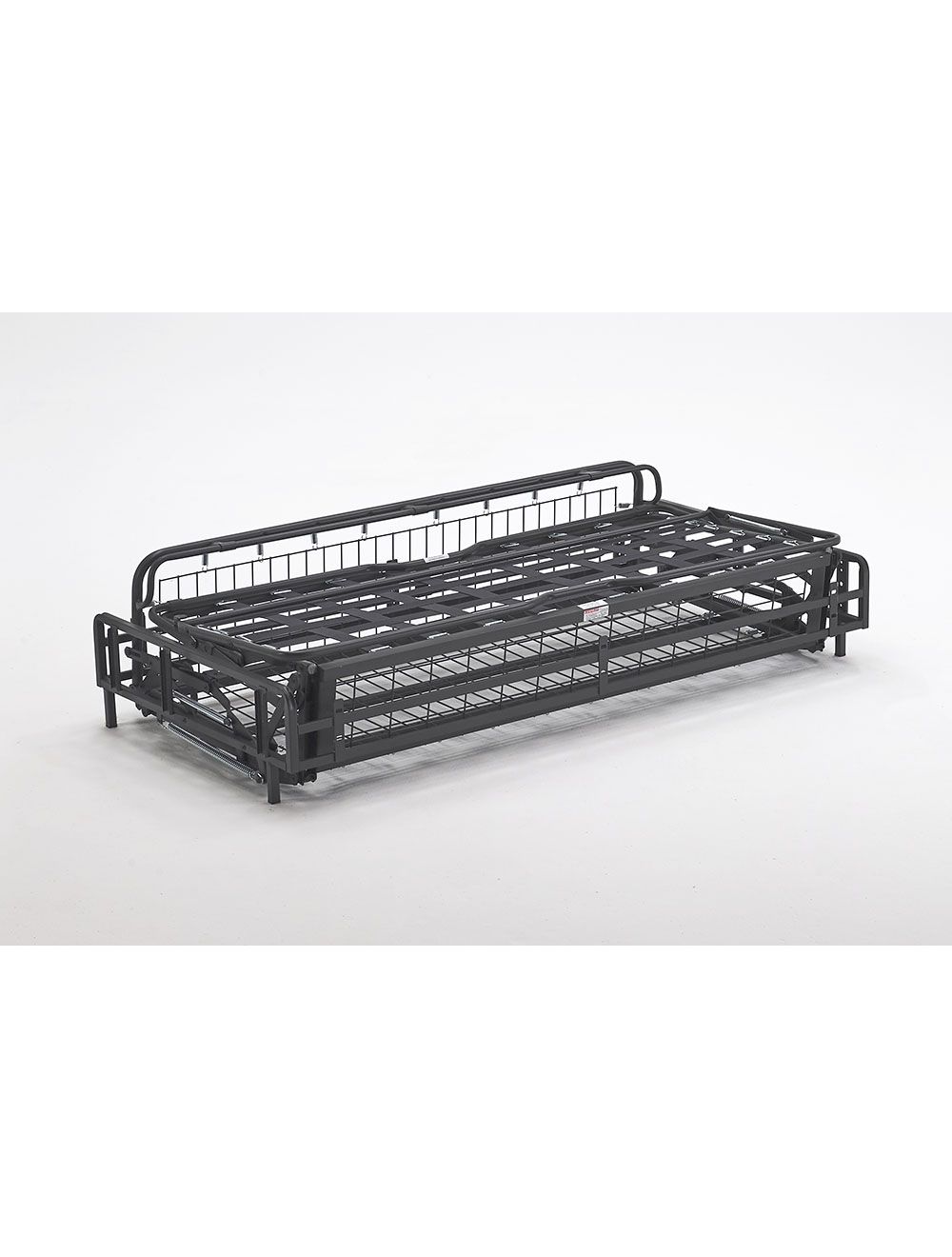

Two fold mechanism with front lifting operation. Seat cushions remain attached to a special frame which is part of the unit and do not need to be removed during the opening and closing operation. The orthopaedic weld mesh sleeping base can accomodate a spring, pocket spring, viscoelastic (14x190cm) or foam (12/13x200cm) mattresses. The seat is supported by elastic webbing. Constructed in high resistance cold rolled steel tube and frame complete with bayonet fixings for easy mounting of various parts(arms,back).

Please note this is just the mechanism, available for armchairs. Price refers to the metal structure only. Sofa or any further upholstery is not included
Mattress not included in the price, available upon request. Write to sales@sintesi.design for quotes.

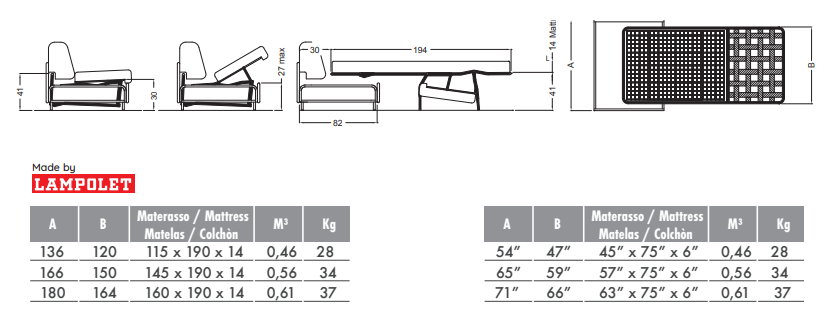

Dimensions:
Depth Close 82 cm
Depth Open 194 cm
- Mechanism Width 126 cm
- Mechanism Width 136 cm
- Mechanism Width 166 cm
- Mechanism Width 180 cm
